Aluminium Vial Seals
____________________________________________________________________
Vial Seals

Vial Seals Graph

Click on Size For Product Drawing
Size
External Dia of Vial Neck
Internal Dia of Seal
Dia of Perforation on Seal
Height of Seal
in mm
H
D
d
H
11
5.6 ± 0.2
11.10 ± 0.1
5.30 ± 0.2
5.90 ±0.2
7.1 ± 0.2
13.50 ± 0.1
6.00 ± 0.2
7.20 ± 0.2
7.4 ± 0.2
20.40 ± 0.1
10.11 ± 0.2
7.60 ± 0.2
9.6 ± 0.2
30.20 ± 0.2
14.60 ± 0.2
10.00 ± 0.2
9.3 ± 0.2
32.20 ± 0.2
21.80 ± 0.2
9.60 ± 0.2
12.8 ± 0.2
33.20 ± 0.2
20.25 ± 0.2
13.00 ± 0.2

Aluminium Snap off (flip Top) Seals
______________________________________________________________
Snap Seals

"SNAP OFF" IS OUR REGISTERED TRADEMARK
Imprinted Company Logo/Name is available on Plastic Flip on request.
Highlight

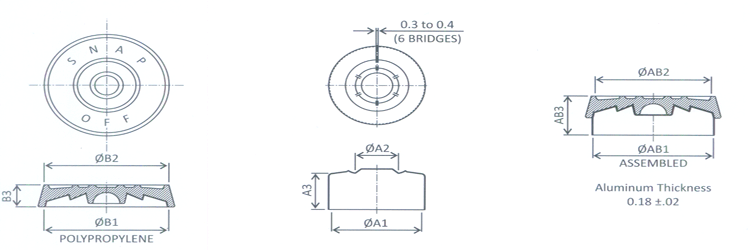

Snap Seal Graph



Click on Size For Product Drawing
Size
ØB1
ØB2
B3
ØA1
ØA2
A3
ØAB1
ØAB2
AB3
in mm
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
13.8
13.9
15.1
15.4
3.0
3.2
13.2
13.4
7.1
7.4
6.7
6.9
13.2
13.4
15.1
15.4
8.0
8.4
20.7
20.9
22.2
22.7
3.7
3.9
20.2
20.4
9.5
9.7
7.5
7.8
20.2
20.4
22.2
22.7
9.3
9.6
33.3 33.5 35.9 36.5 4.48 4.52 32.6 33.0 19.2 19.6 13 13.2 32.6 33.0 35.9 36.5 14.2 14.6
